Silicones have unique properties amongst polymers because of the simultaneous presence of organic groups attached to a chain of inorganic atoms. They are used in many industries including those devoted to electronics, paints, construction and food.



Structures and properties of silicones

Silicones are synthetic polymers with a silicon-oxygen backbone similar to that in silicon dioxide (silica), but with organic groups attached to the silicon atoms by C-Si bonds.  The silicone chain exposes organic groups to the outside.

Thus, despite having a very polar chain, the physical properties of silicones are similar to those of an alkane.  The Si-O bond energy is much larger than the C-C bond energy and this enables the -Si-O-framework of the silicone to give the polymers thermal stability, as in silica, and so they can be used where comparable organic materials would melt or decompose.

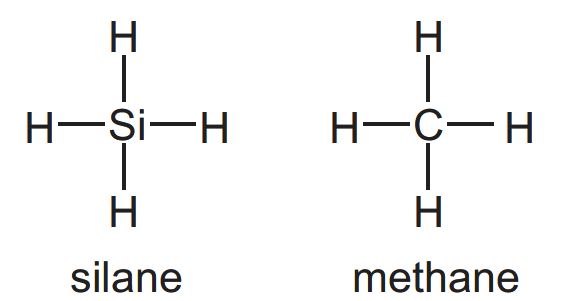

To distinguish between different silicones, systematic names are used, based on the monomer.  The simplest silicon compound is silane, SiH4 which belongs to the homologous series of silanes.  Silanes correspond to the alkanes whose simplest member is methane, CH4.

The presence of the oxygen atoms in the silicone chain is indicated by using the systematic name, siloxane, so termed as it contains a silicon atom, an oxygen atom and it is saturated as in an alkane.

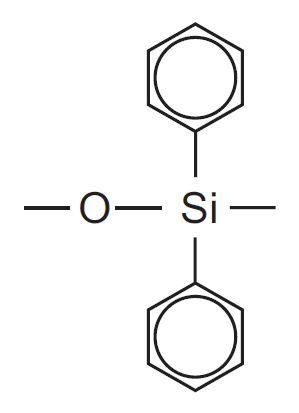

Thus if the groups attached to the siloxane chain are phenyl groups, the resulting silicone is called poly(diphenylsiloxane) and has these repeating units along the chain.

The most widely used silicones are those which have methyl groups along the backbone.  Properties such as solubility in organic solvents, water-repellence and flexibility can be altered by substituting other organic groups for the methyl groups.  For example, silicones with phenyl groups are more flexible polymers than those with methyl groups.  They are also better lubricants and are superior solvents for organic compounds.

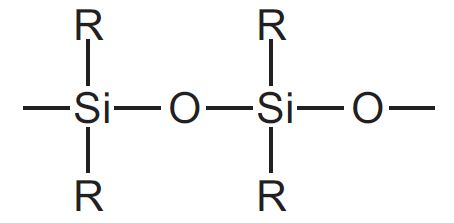

The structure of the repeating units of silicones can be represented as:

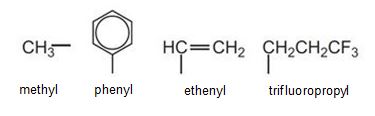

Where R represents organic groups attached to the silicone backbone, for example:

Uses of silicones

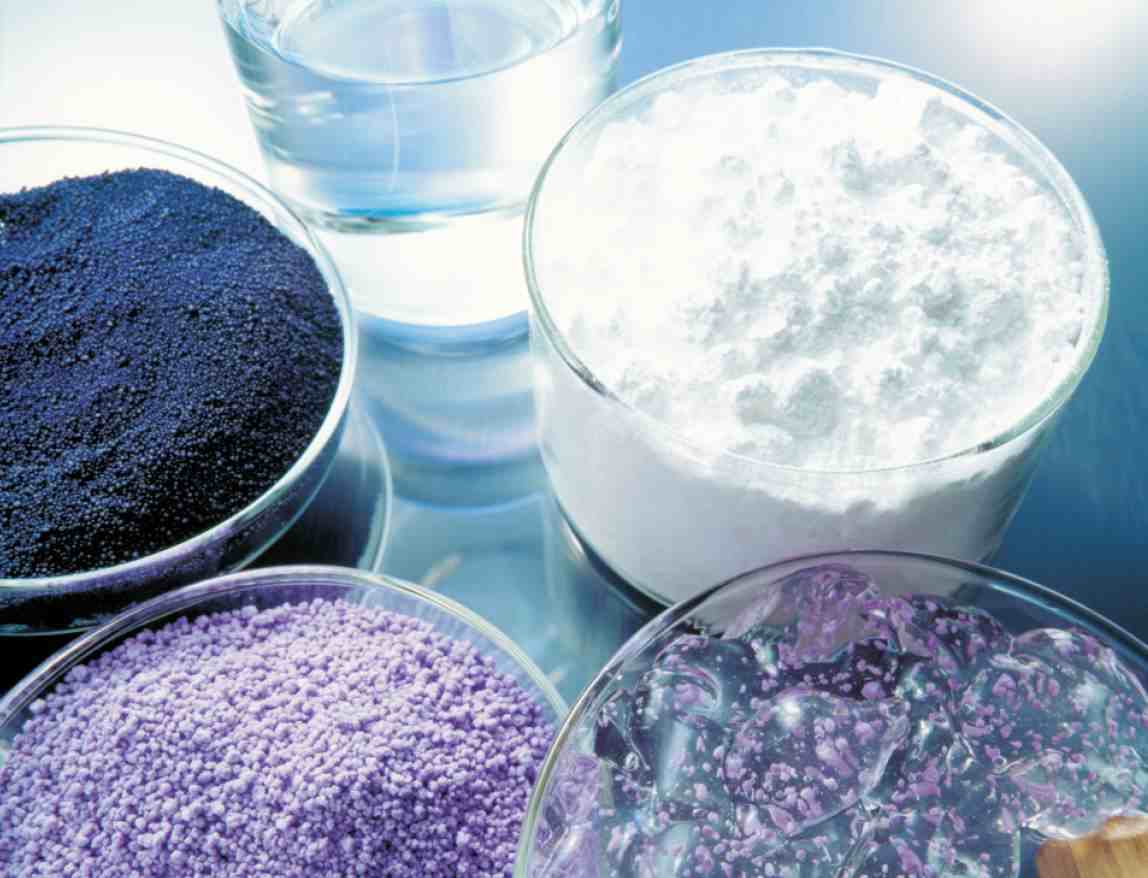

 The chemical structure of the silicones allow them to be produced in a variety of forms:
a) Silicone fluids
b) Silicone gels
c) Silicone elastomers (rubbers)
d) Silicone resins
Their physical form and uses depend not only on the structure of the polymer, whether it is a short or long chain molecule, a three dimensional network or as a crosslinked species similar to a silicate, but also on the organic groups attached to the Si-O framework.

(a) Silicone fluids are typically straight chains of poly(dimethylsiloxane), with the repeating structure:

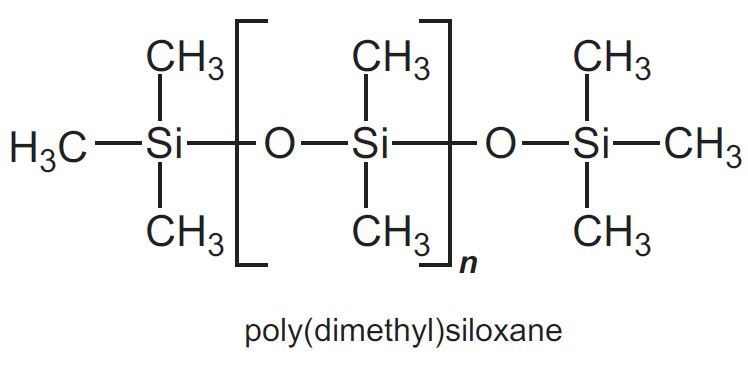

They usually have trimethylsilyl groups, Si(CH3)3 at each end of the chain:

The silicones with short chains are fluids which, compared to hydrocarbons, have a more or less constant viscosity over a wide temperature range (200 to 450 K).  They also have very low vapour pressures.

The low surface tension of silicone fluids gives them unique surface properties.  They are, for example, used as lubricants in polishes (a mixture of wax and a silicone fluid dissolved in an organic solvent), in paints and for water-proofing fabrics, paper and leather.  They also have anti-foaming properties and have been used, for example, to suppress the foaming of detergents in sewage disposal plants and in domestic washing powders. This is because they have a very low surface tension and thus displace the surfactant molecules on the surface and depressing the ability of the surfactant to promote foam,.

Silicones have a low enthalpy of vaporization and a smooth, silky feel and thus are attractive as a basis for personal care products such as perspirants and skin care lotions.  Given their thermal stability and resistance to chemical attack,another important use is as a hydraulic or transformer oil.

A range of fluids is made by mixing polysiloxanes of low molecular masses with others with higher molecular masses.  Some use the cyclic silicones which are formed during the preparation of the linear polysiloxanes.

(b) Silicone gels are based on poly(dimethylsiloxane) chains but with a few cross-links between the chains, giving it a very open three-dimensional network.  Often the cross-linking is done after a silicone fluid, together with a reactive group, is poured into a mould and then warmed or catalysed so that there is interaction to form cross-linking between the polymer chains.  This is a very effective technique for protecting sensitive electronic equipment from damage from vibration and the polymer also acts as an electrical insulator.  Pads containing a silicone gel are also used as shock absorbers in shoes, particularly in high-performance trainers and running shoes.

(c) Silicone elastomers (rubbers) are made by introducing even more cross-linking into the linear chain polymers.  There are two main ways of doing this.  One is by adding a curing agent at room temperature (RT Vulcanizing), either using an organo-tin compound or with a platinum catalyst.  They are elastic, like a natural rubber and retain this property up to over 550 K and to temperatures below 250 K.  Another method is by adding a peroxide as a catalyst at an elevated temperature to produce what is termed as a High-Temperature –Vulcanizing Silicone Rubber.  They too are stable over a wide range of temperatures (from 200 to 450 K and for some formulations the range can be increased from 200 to 550 K).

Their structure is somewhat similar to natural rubber and they behave as elastomers.and the properties are determined by the amount of cross linking and the length of the chains

Figure 1  These silicone elastomer particles are used in skin creams.  Their small and perfectly spherical shape combined with a rubbery texture improves the feel of the cream as it is applied to the skin.
By kind permission of Dow Corning.

Although their strength at normal temperatures is inferior to that of natural rubber, silicone rubbers, because of their electrical properties and thermal stability, are used when electronics have to be protected, for example in a car.

Silica is added as a filler to make the elastomer stronger.

(d) Silicone resins have a three-dimensional structure with the atoms arranged tetrahedrally about the silicon atoms.  The resins are usually applied as a solution in an organic solvent, and are used as an electrical insulating varnish or for paints where water repellence is desired, for example, to protect masonry.  They are also used to give an 'anti-stick' surface to materials coming into contact with 'sticky' materials such as dough and other foodstuffs.

Hydroxyl groups on the resin react with hydroxyl groups that are on the surfaces of various inorganic surfaces such as silica and glass, thus making the surface water-repellent.

A large range of silanes, known as coupling agents, has been developed to enable chemists to bond an inorganic substrate (such as glass, minerals and metals) to organic materials (for example, organic polymers such as the acrylics, polyamides, urethanes and polyalkenes).  Although methyl is the usual organic group in fluids, there may be also amino, ethenyl (vinyl) or phenyl groups as well.  For example,the amino group can allow the silicone fluid to be attached to synthetic fibres which softens the materials made from the fibres, which is particularly useful for clothes and towels.

The resulting coatings confer the surface properties of a silicone to a very wide range of materials.  Similar mechanisms enable some resins to be used as adhesives.

Annual production of silicones

World 2.4 million tonnes1

1.  In 2015 Grand View Research, 2018

Manufacture of silicones

Silicones are manufactured from pure silicon which has been obtained by the reduction of silicon dioxide (silica) in the form of sand with carbon at high temperatures:

The production of silicones from silicon takes place in three stages:
a) synthesis of chlorosilanes
b) hydrolysis of chlorosilanes
c) condensation polymerization

(a) Synthesis of chlorosilanes

Silicon is first converted into chlorosilanes, e.g. RSiCl3, R2SiCl2 and R3SiCl, where R is an organic group.
When chloromethane is passed through heated silicon at about 550 K under slight pressure and in the presence of a copper catalyst (often copper itself but other copper-containing materials can be used, for example, brass or copper(II) chloride) a volatile mixture of chlorosilanes distils over.  For example:

The mixture of liquids produced contains these three compounds:

Careful distillation of the liquid mixture of chlorosilanes produces pure fractions of each chlorosilane.  Dimethyldichlorosilane is the main product (ca 70-90%, the amount depending on the conditions used).

(b) Hydrolysis of chlorosilanes

A dichlorosilane is hydrolyzed to a molecule with two hydroxyl groups:

The product is a disilanol. The suffix -ol in a silanol is to show that the molecule contains at least one hydroxyl group attached to a silicon atom and the simplest example is dimethyldisilanol:

This nomenclature is similar to that of the alcohols, the simplest alcohol with two hydroxyl groups being ethane-1,2-diol:

The hydroxyl groups of silanols react spontaneously to form a siloxane:

If R is a methyl group, the polymer is a poly(dimethylsiloxane).

Poly(dimethylsiloxanes) are produced with n = 20-50, which is not long enough to produce useful silicones.

These relatively short polymers are known as oligomers.  Cyclic polymers, for example ((CH3)2SiO)4, are also produced and then separated out.

The oligomers are washed and dried.

The hydrochloric acid produced when the chlorosilanes are hydrolyzed is recycled and reacts with methanol to regenerate chloromethane:

(c) Condensation polymerization

The oligomers condense rapidly in the presence of an acid catalyst to form long chain polymers:

The value of (m+n) is usually between 2000 and 4000.  The production of longer chains is favoured if the water is removed, for example by working under vacuum.

To form silicone gels, elastomers and resins, the long siloxane chains are induced to cross-link.  There are four main ways of doing this:

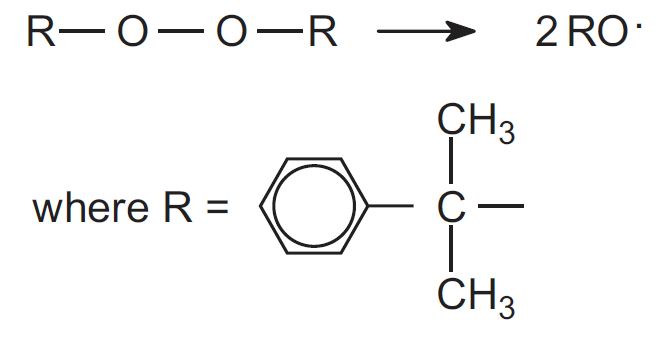

(i) Cross-linking is often effected by first synthesizing silanes with a functional group, in place of a methyl group, that will react further.  For example, a silane containing an ethenyl (vinyl) group such as ethenylmethyldichlorosilane, can be added to, for example, dimethyldichlorosilane.  However with ethenyl groups in the chain, the chains are also able to undergo free radical addition reactions, in a similar way to the free radical polymerization of chloroethene (vinyl chloride).  This leads to cross-linking between the polymer chains. As with this polymerization, the addition reactions are initiated by radicals supplied on decomposition of an organic peroxide (for example, dicumyl peroxide):

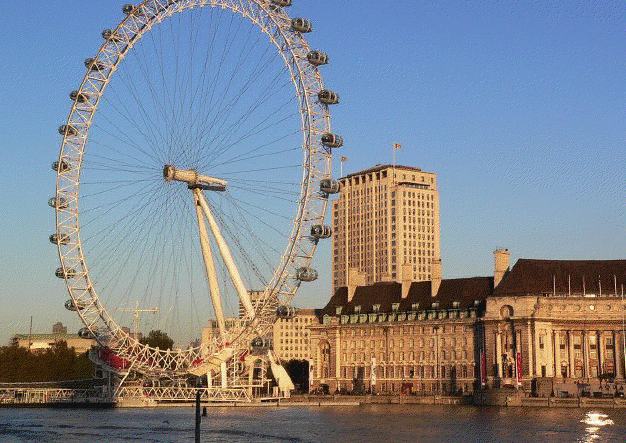

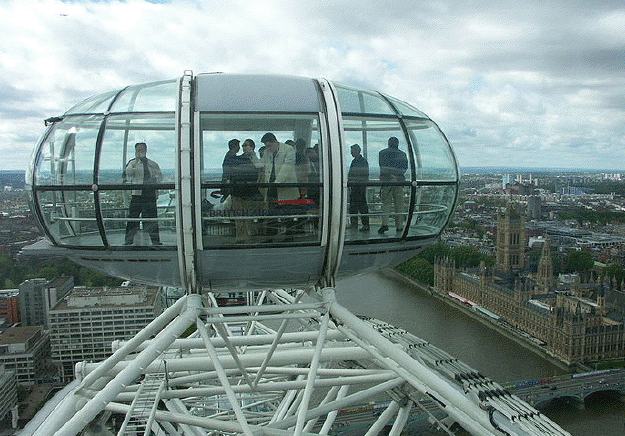

Figures 2 and 3  Silicones played an important part in the construction of the London Eye, the largest observation wheel in the world.

For example, the windows of the capsules are made of reinforced glass (using polyvinyl butyral, PVB as the laminate) which is anchored to the metal frame with a silicone resin.  This resin is prepared in situ from two components one of which is a silicone with alkoxy groups which provide the cross-linking needed to form the resin.

The result is that the capsule can withstand winds of 280 km h-1 .  These systems are also being used in buildings which are considered to be vulnerable to terrorist attacks, the glass, resistant to bomb blasts and bullets, will keep in place because of the very strong bonding to the metal frames.

Figure 2 By kind permission of JulianHerzog (Wikimedia Commons).



Figure 3 By kind permission of Lee Kindness (leekindnes.com) (Wikimedia Commons).

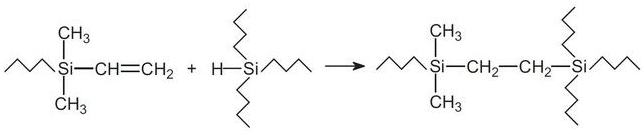

(ii) Cross-linking can also be achieved by using siloxanes with ethenyl (vinyl) groups and other siloxanes containing Si-H groups, with a platinum compound as catalyst:

(iii) A further way of producing cross-linking is to have an ethanoyl group in the silane.  When these silicones are exposed to the air, the moisture reacts with the functional group, yielding a cross-linked silicone. An organometallic tin compound catalyses the reaction.  These systems are often used as sealants and can be used in the home.  The other product formed is ethanoic acid which can be recognized by its vinegary smell.
(iv) If some methyltrichlorosilane is added to the reactant, say dimethyldichlorosilane, the three chlorine atoms are hydrolyzed, thus producing a three dimensional network.

In all four methods, the physical properties of the silicone can be modified by varying the proportions of the reactants, which controls the extent of cross-linking and hence how rubbery is the product.





Date last amended: 11th January 2019
